ResMed
SKU: RMD.MSK.0032
ResMed AirFit N20 Classic Nasal CPAP Mask
$174.00
$265.00
Authorized Dealer
ResMed
SKU: RMD.MSK.0032
ResMed AirFit N20 Classic Nasal CPAP Mask
$174.00
$265.00
Choose Mask Type
Features
Exceptional Fit
Comfortable
Easy to Use
Free Field of View
Innovative
Sizes & Guides
Small Cushion
Medium Cushion
Large Cushion
Resources & Downloads
What's in the Box
Product Specifications
Brand
ResMed

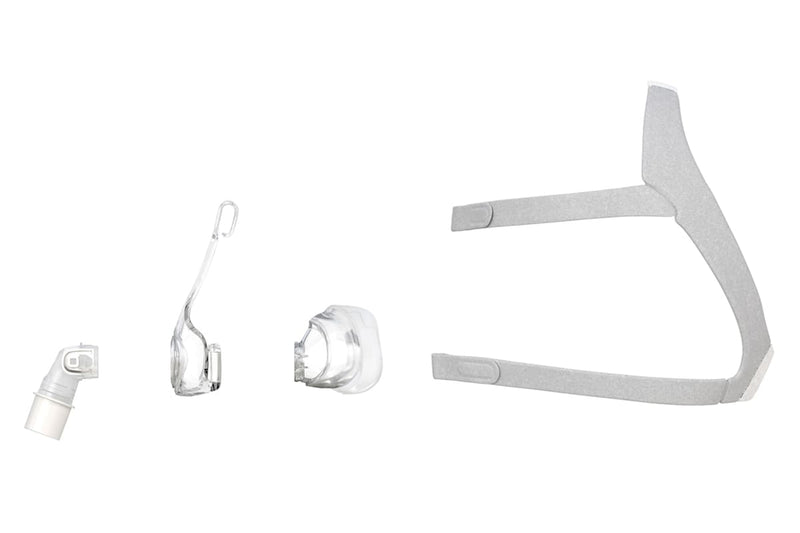

What's in the package?

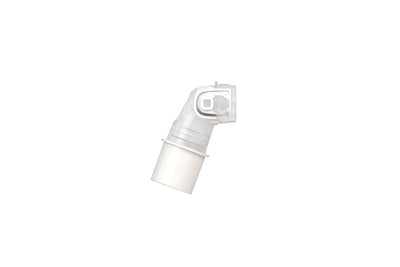

1x Elbow
1x Vent
2x Side buttons
1x Swivel

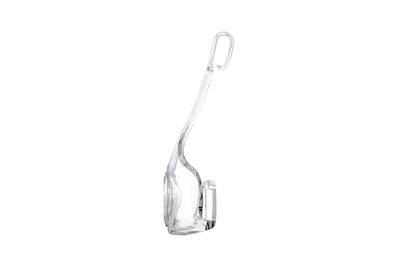

1x Frame

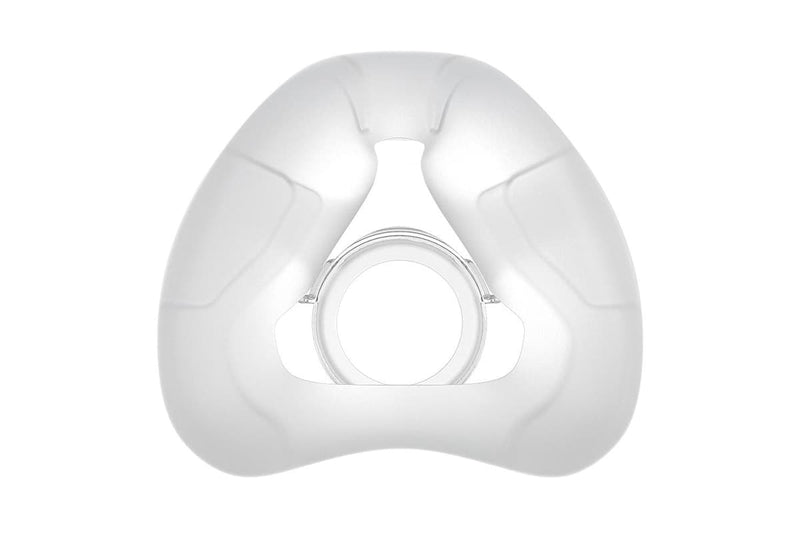

1x Cushion

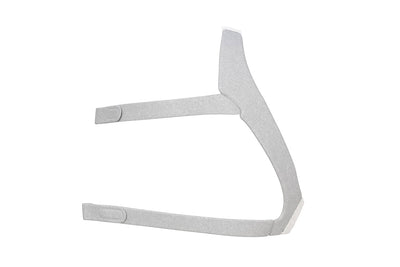

1x Headgear
1x Vent
2x Side buttons
1x Swivel
1x Frame
1x Cushion
1x Headgear
Physical Specifications
Gross dimensions: 141 mm (H) x 73 mm (W) x 90 mm (D) Mask fully assembled with elbow assembly (no headgear)
Dead space information: Physical dead space is the empty volume of the mask to the end of the swivel. Using the large cushions it is 55.8 mL.
Dead space information: Physical dead space is the empty volume of the mask to the end of the swivel. Using the large cushions it is 55.8 mL.
Performance
Therapy pressure: 4 to 30 cm H2O
Resistance Drop in pressure measured (nominal) at 50 L/min: 0.4 cm H2O
at 100 L/min: 1.5 cm H2O
Operating temperature: 5°C to 40°C
Operating humidity: 15% to 95% non-condensing
A-weighted sound power level: 26 dBA, with uncertainty of 3 dBA.
The A-weighted sound pressure level of the mask at a distance of 1 m is 18 dBA, with uncertainty of 3 dBA.
Resistance Drop in pressure measured (nominal) at 50 L/min: 0.4 cm H2O
at 100 L/min: 1.5 cm H2O
Operating temperature: 5°C to 40°C
Operating humidity: 15% to 95% non-condensing
A-weighted sound power level: 26 dBA, with uncertainty of 3 dBA.
The A-weighted sound pressure level of the mask at a distance of 1 m is 18 dBA, with uncertainty of 3 dBA.
Cleaning instructions
After each use, soak and gently agitate the cushion and elbow in warm (30°C) water with mild liquid detergent for up to 10 minutes, then clean all components with a soft bristle brush, ensuring the elbow’s vent holes are scrubbed, and rinse thoroughly under warm running drinking-quality water. Weekly, soak and agitate the separated headgear and frame in warm (30°C) water with mild detergent for up to 10 minutes. Do not connect flexible PVC products, such as PVC tubing, directly to any part of the mask.
Warranty
90 days
How To Use
