Fisher & Paykel Healthcare
SKU: FAP.MSK.0043

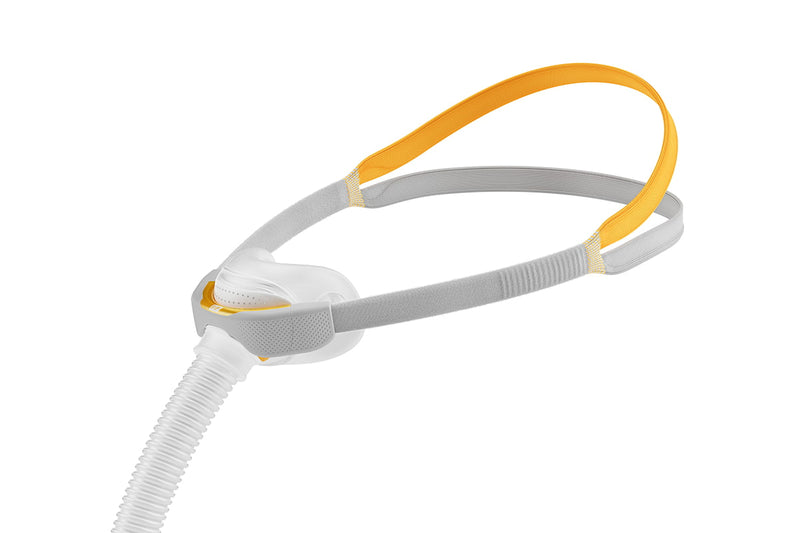

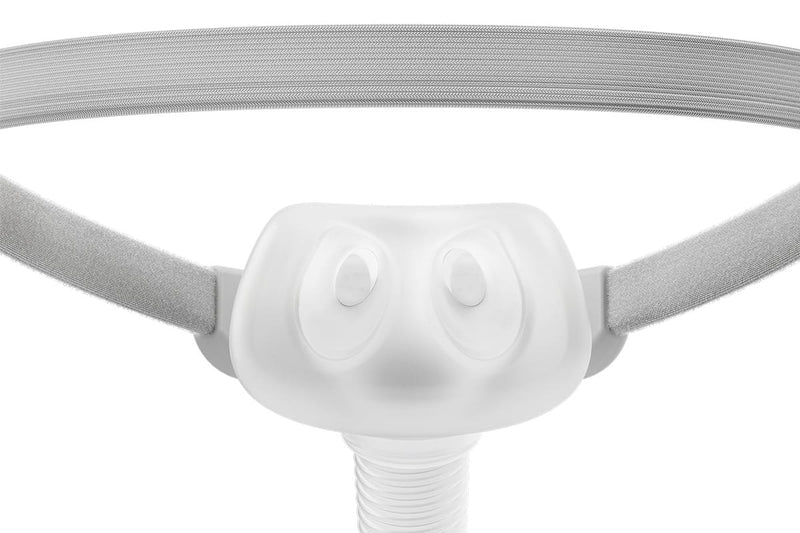

Fisher & Paykel Solo Nasal Pillow Mask
$145.00
$349.00
Authorized Dealer
Fisher & Paykel Healthcare
SKU: FAP.MSK.0043
Fisher & Paykel Solo Nasal Pillow Mask
$145.00
$349.00
Choose Mask Type
Features
Features
AutoLock™ headgear technology reduces over-tightening and ensures a comfortable fit. One-size headgear fits all.
Dynamically responds to sleep movement & CPAP therapy pressure reducing the risk of air leaks
Simplistic and innovative design for ease of use.
Minimal components for easy cleaning and less parts to replace.
Interchangeable interface between the F&P Solo Pillows (sold separately).
Suitable for all ages and levels of dexterity.
Sizes & Guides

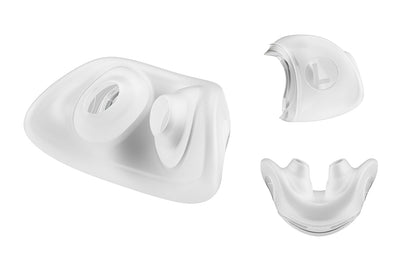

F&P Solo Nasal Pillow Mask is sold as a Fit Pack which includes all available cushion pillow sizes; Small, Medium & Large.
The nasal cushions are interchangeable with the F&P Solo Nasal Mask.
Cushion sizes might not be transferrable, in other words if you are a Medium in the Nasal it doesn’t mean you would be a Medium in the Nasal Pillow.
These spare cushions can also be bought individually, enabling you to switch between the two to suit your preferences without needing to change the headgear or frame.
Resources & Downloads
What's in the Box
Product Specifications
Brand
Fisher & Paykel
What's in the package?
3x AirPillow™ Cushions (Sizes: Small, Medium, Large).

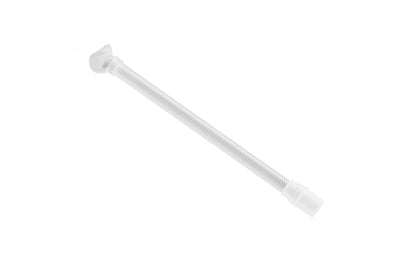

1x Solo Tube, Frame, and Swivel.

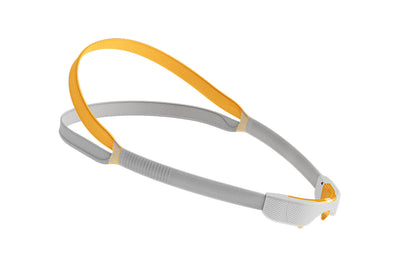

1x Solo Standard Headgear (AutoFit™/AutoLock™ Technology, One-size).
1x Solo Tube, Frame, and Swivel.
1x Solo Standard Headgear (AutoFit™/AutoLock™ Technology, One-size).
Physical Specifications
Materials: Pyrogen-free and explicitly not made with natural rubber latex or DEHP (di(2-ethylhexyl) phthalate). Cushions are primarily made of Silicone and Polycarbonate (PC).
Overall Design: Minimal-contact, low-profile design providing an open sightline. Features a simple, magnet-free structure.
Vent Design: Built-in exhaust holes in the mask frame ensure a controlled leak for expelling exhaled carbon dioxide (CO2).
Approximate Dead Space: Large Pillow Size: 30.5 cm³.
Overall Design: Minimal-contact, low-profile design providing an open sightline. Features a simple, magnet-free structure.
Vent Design: Built-in exhaust holes in the mask frame ensure a controlled leak for expelling exhaled carbon dioxide (CO2).
Approximate Dead Space: Large Pillow Size: 30.5 cm³.
Performance
Therapy Pressure Range: 4 to 20 cmH2O (Operating Range).
Flow Resistance / Pressure Drop:
At 50 L/min: 1.6 ± 1.1 cmH2O
At 100 L/min: 6.0 ± 3.1 cmH2O
Sound/Noise Level (A-weighted):
Sound Power Level: 31.5 dBA (with uncertainty ± 2.5 dBA).
Sound Pressure Level (at 1 m): 23.6 dBA (with uncertainty ± 2.5 dBA).
Flow Resistance / Pressure Drop:
At 50 L/min: 1.6 ± 1.1 cmH2O
At 100 L/min: 6.0 ± 3.1 cmH2O
Sound/Noise Level (A-weighted):
Sound Power Level: 31.5 dBA (with uncertainty ± 2.5 dBA).
Sound Pressure Level (at 1 m): 23.6 dBA (with uncertainty ± 2.5 dBA).
Cleaning instructions
Clean the cushions daily by handwashing them in lukewarm water with mild soap, then rinsing thoroughly. Weekly, handwash the disassembled frame, headgear, tube, and swivel using the same mild soap solution and rinse well. Ensure the mask is fully disassembled before cleaning, and note that the frame, tube, swivel, and cushions are rated for a maximum of 25 cleaning cycles.
Warranty
90 days
