BMC
SKU: BMC.MCH.0020

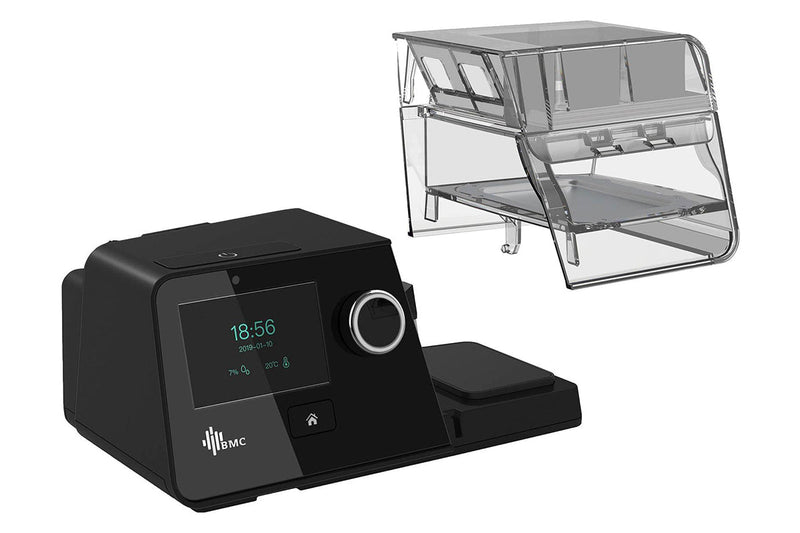

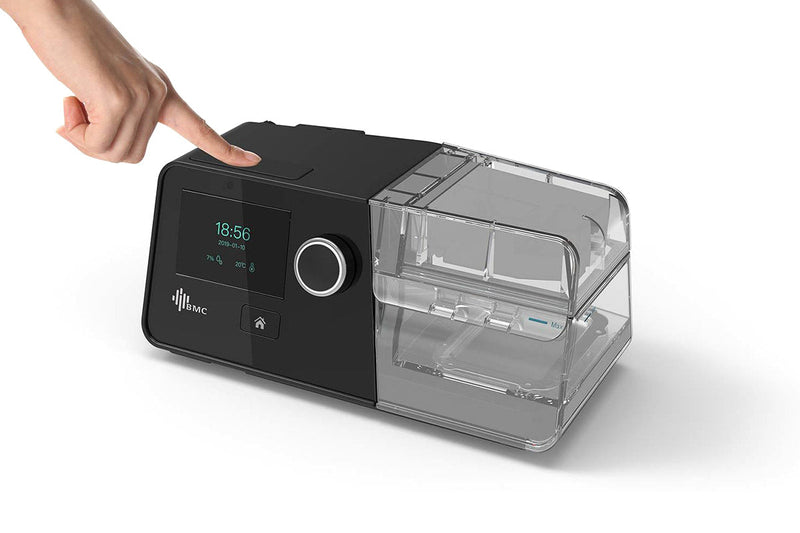

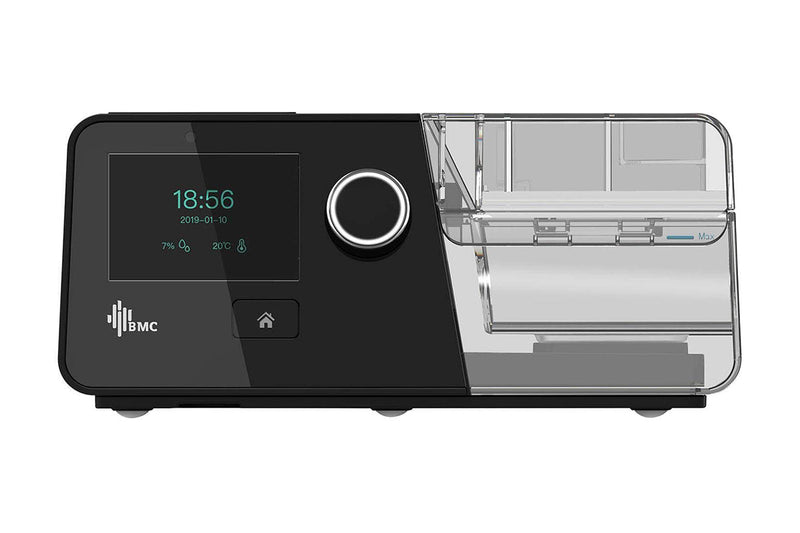

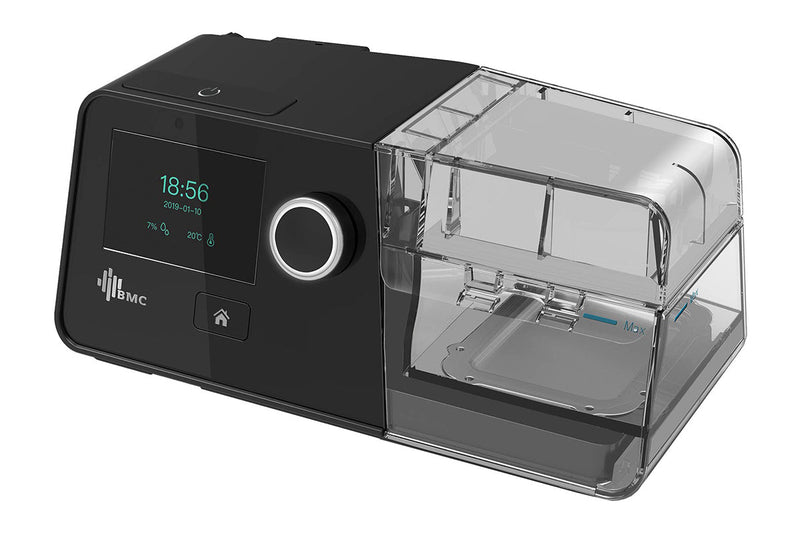

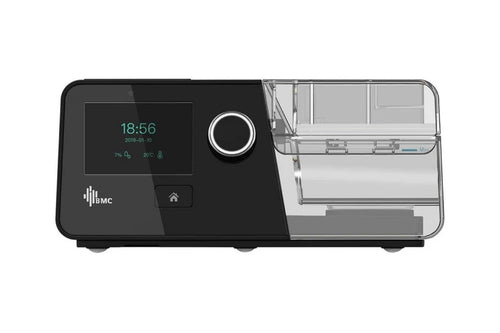

BMC Luna G3 Automatic CPAP Machine
$1,199.00
$1,250.00
Authorized Dealer
On
Sale
BMC
SKU: BMC.MCH.0020
BMC Luna G3 Automatic CPAP Machine
$1,199.00
$1,250.00

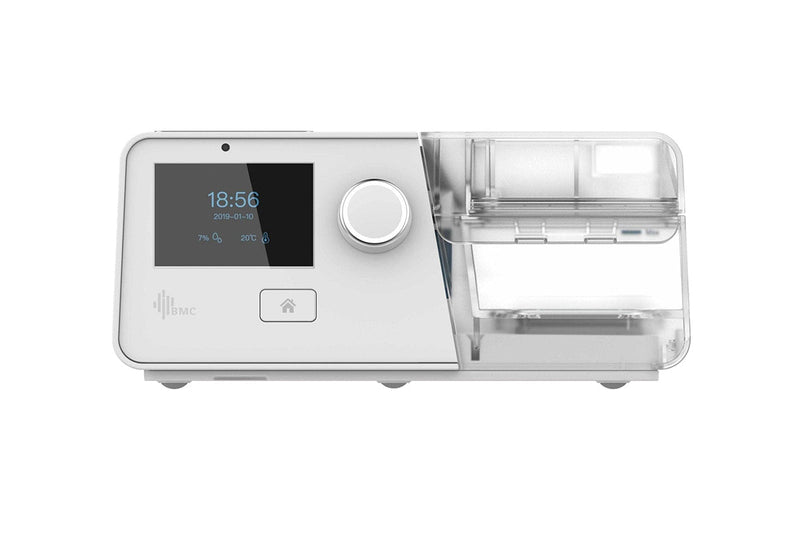

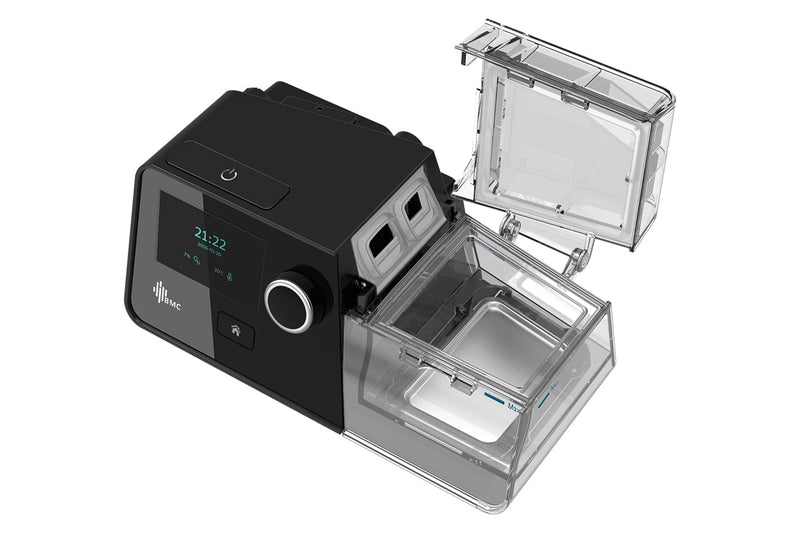

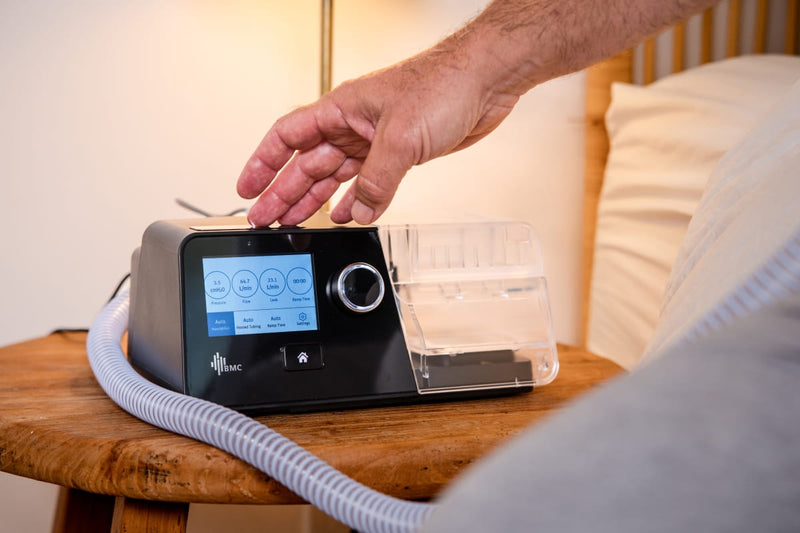

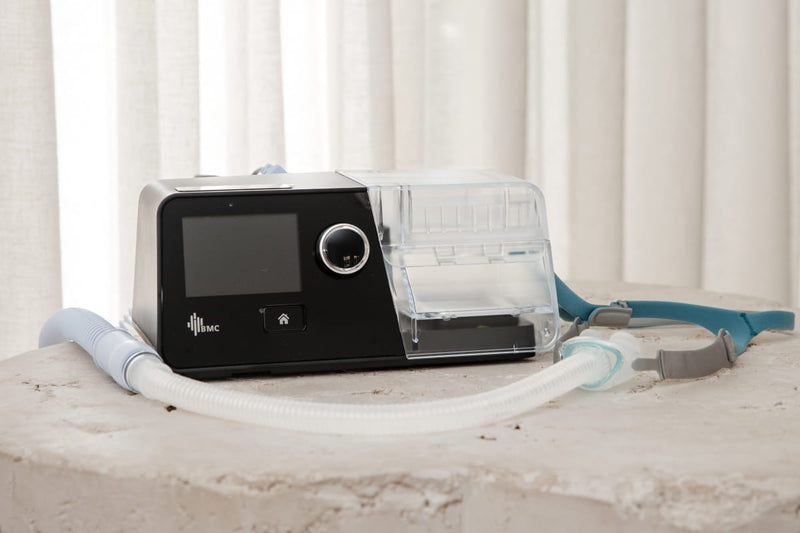

BMC Luna G3 Automatic CPAP Machine
Features
Free RESmart software program
Auto-Humidity Control
The option of integrating a SpO2 Sensor
Real-time alert for tubing/mask leak
Super Quiet Operation with multi-stage noise reduction technology
Smart Auto-Adjusting Pressure Treatment based on pressures from the previous 5 nights of use Fine-Particle Filter
Free Mobile app available for QR code method of data access
5 heater settings on heated humidifier
Pre-Heating Humidifier Option Available
Central Apnoea Detection
Accessory Change Reminder function
4-20 cm therapy pressure
Auto-Ramp feature Senses patients Sleep/Wake State
Four methods of data access including SD Card Software, iCode, and Web-Based Platform to View Patient Downloads
RESlex exhalation relief with three comfort settings
Super Quiet Operation with multi-stage noise reduction technology
5 Years Warranty
What's in the Box
Product Specifications
Brand
BMC

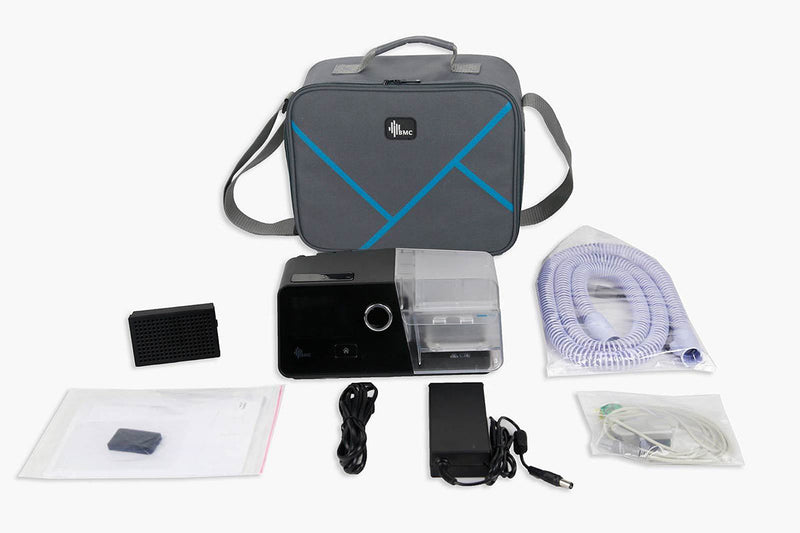

What's in the package?
1x BMC Luna G3 Auto System
1x BMC Eco Heated Humidifier (Integrated)
1x Water Reservoir
1x Hose (6' = 1.8m long)

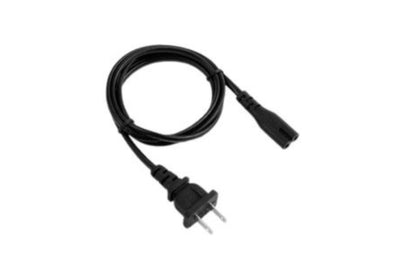

1x Australian specification Power cord

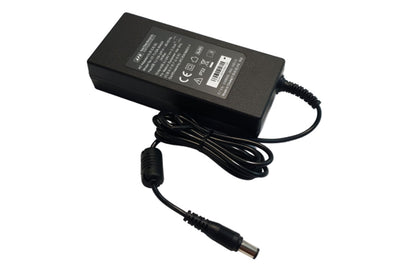

1x Australian power supply
1x Travel carry bag

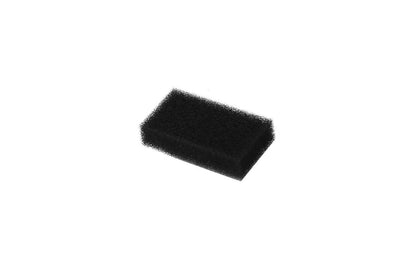

1x Air filter
1x Spare air filter
1x Instruction manual
1x 8GB SD card / memory chip
1x BMC Eco Heated Humidifier (Integrated)
1x Water Reservoir
1x Hose (6' = 1.8m long)
1x Australian specification Power cord
1x Australian power supply
1x Travel carry bag
1x Air filter
1x Spare air filter
1x Instruction manual
1x 8GB SD card / memory chip
Compatibility
Compatible with Luna G3 CPAP masks and standard 15 mm, 22 mm, and heated tubing.
Physical Specifications
Dimensions: 265 mm × 145 mm × 114 mm (L × W × H) Weight: 1.7 kg Operating Temperature: 5 °C to 35 °C Storage Temperature: –20 °C to +60 °C Relative Humidity: 15–95 % (non-condensing) Humidifier Water Capacity: 360 mL
Connectivity
Records therapy data on internal memory/SD card for review (manual mentions SD card and connectivity to clinician software).
Power performance
AC Power Consumption 100 - 240 V ～ , 50 / 60 Hz, 2 A Max
Device offer to Heated Tubing Communications Port 24 V 18 W
Type of Protection Against Electric Shock Class II Equipment
Device offer to Heated Tubing Communications Port 24 V 18 W
Type of Protection Against Electric Shock Class II Equipment
Sound Level
26–28 dBA at 10 cmH₂O
Therapy Mode
Auto-CPAP (AutoCPAP for the LG3600 model) or constant mode (CPAP).
Factory settings
6 cmH₂O. to 15 cmH₂O.
Min pressure
4.0 cmH₂O.
Max Pressure
20.0 cmH₂O.
Ramp time
Customizable from 0 to 60 minutes. The ramp starts at a low pressure and gradually increases to the set pressure to increase comfort.
Start pressure
The ramp feature begins from a low pressure (referred to as "Initial P" in the glossary). The lowest pressure the device can deliver is 4 cmH₂O.
EPR (On or Off)
On (The feature is called Reslex). It can be set to Off.
EPR level
Adjustable in stages 1, 2, or 3. The higher the number, the more the treatment pressure is reduced during exhalation.
Climate control
Yes (Integrated humidifier is indicated for humidification and warming of air ).
Humidity Level
Adjustable to Off, Auto, or levels 1 to 5. The optional Heated Tubing can also be set to Off, Auto, or levels 1 to 5.
If Smart Start/ Auto Start is On or OFF
Auto On is available and always enabled, initiating therapy when breathing into the mask. Auto Off is also available to stop therapy when the mask is removed.
Sense Awake (equivalent)
# The Ramp feature facilitates comfort by starting at a low pressure and gradually rising so the patient can fall asleep more comfortably. The AutoCPAP mode adjusts pressure automatically based on monitoring respiratory events like apnea and snoring.
Warranty
5 years
